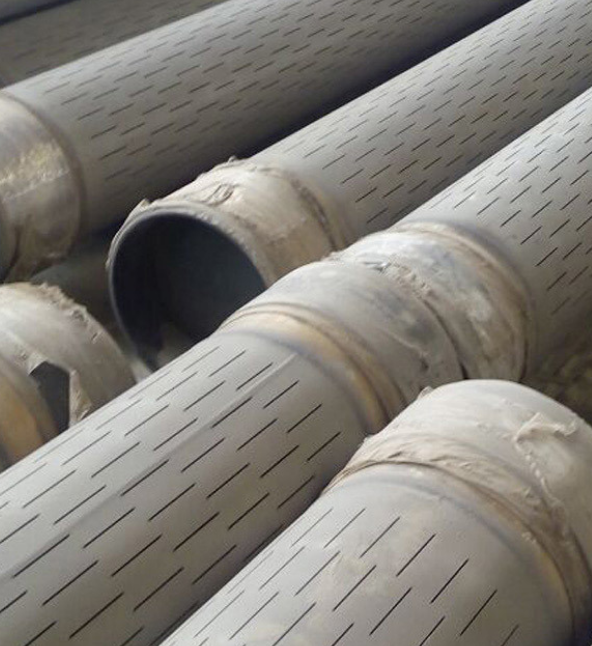

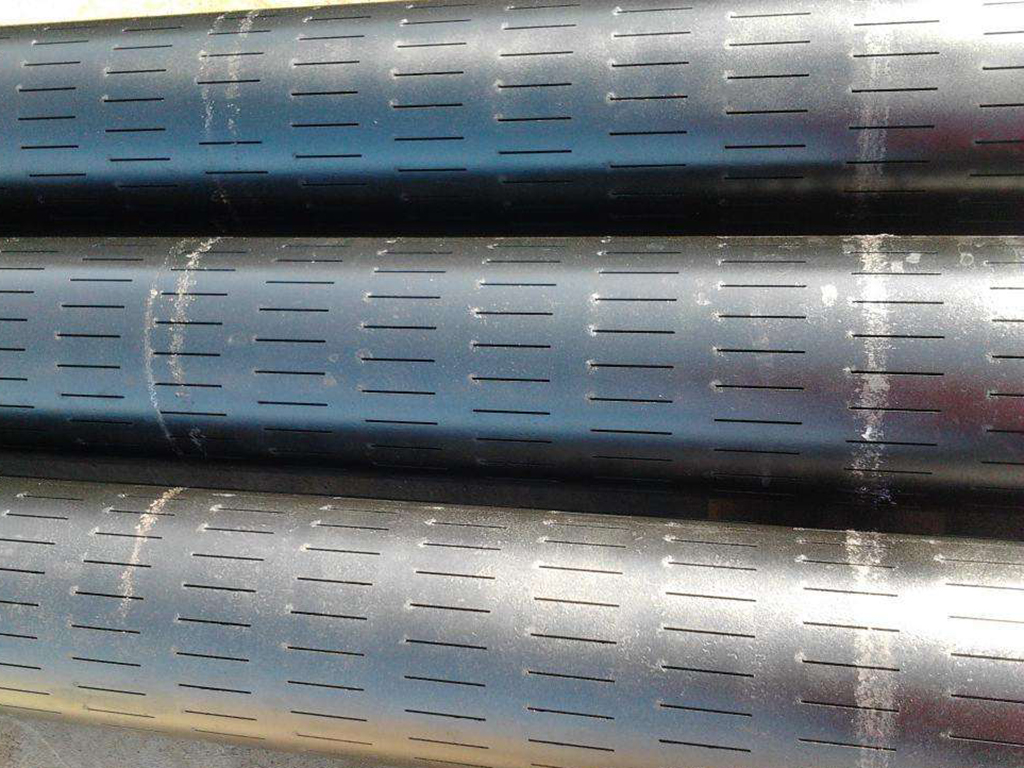

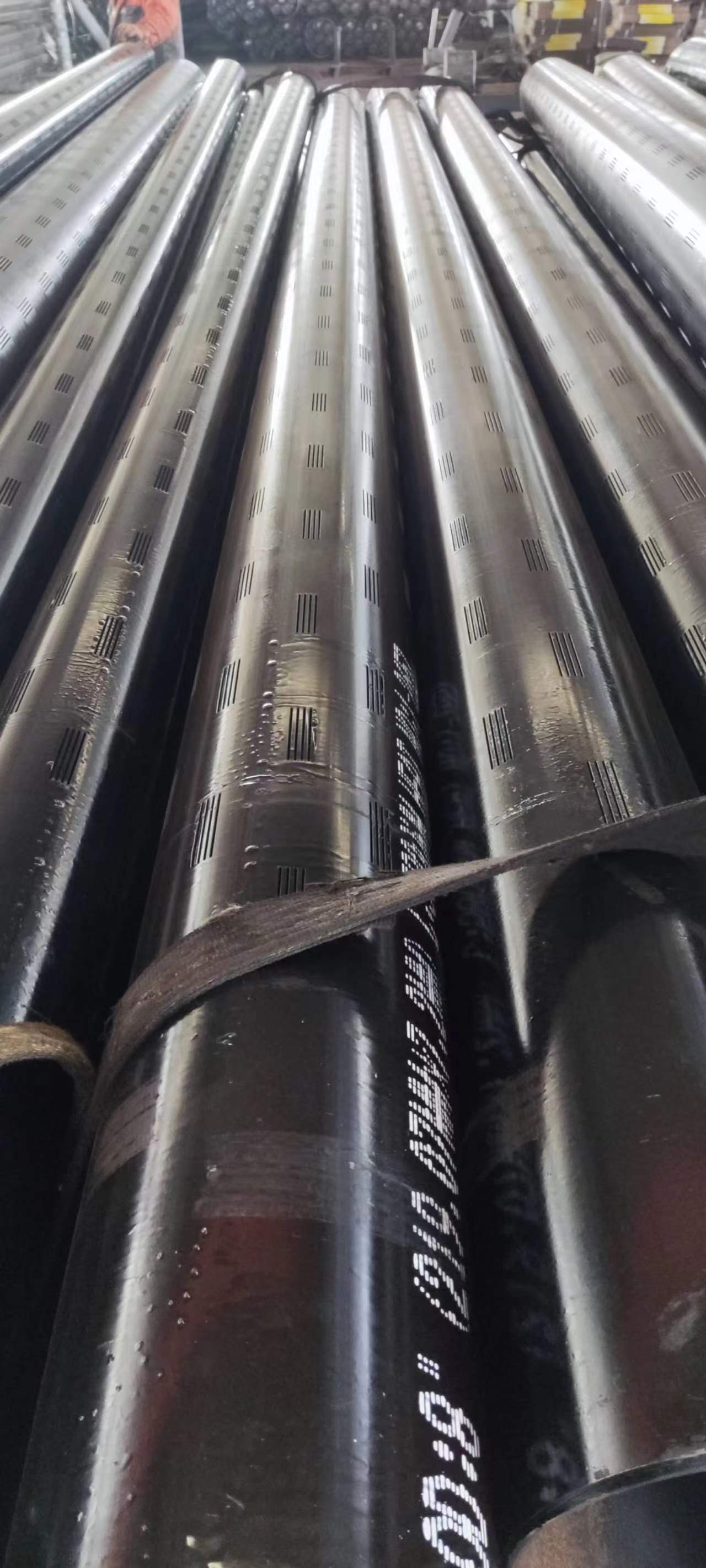

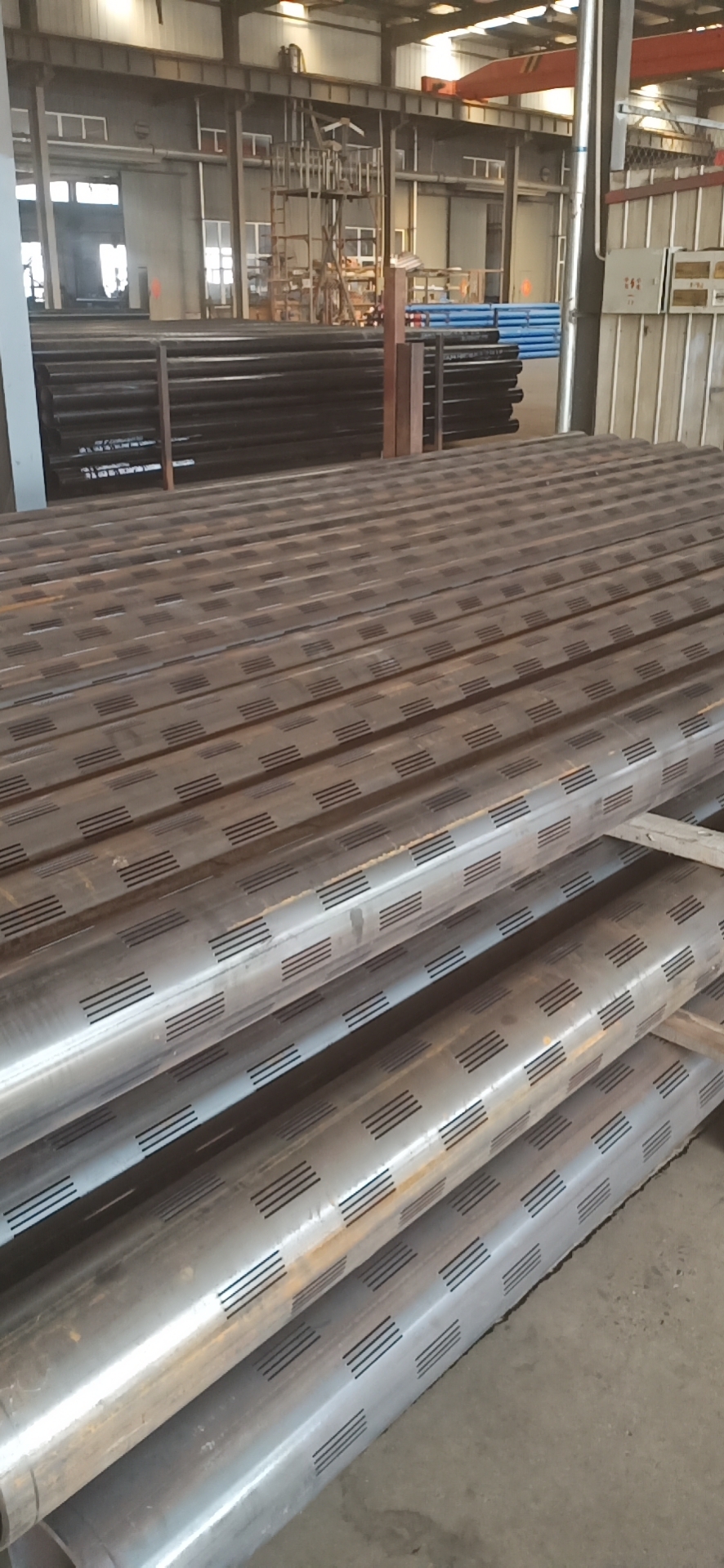

slotted liner

Features & Benefits
1. Varied slot sizes and patterns and shapes.
2. Low cost than wire wrapped screens but same functionality as sand control screens in some case.
3. Low risk of collapse and deformity.
4. Control sand better when the sand diameter is more than 0.3mm,
5. Sand control is independent of the mechanical integrity of the liner

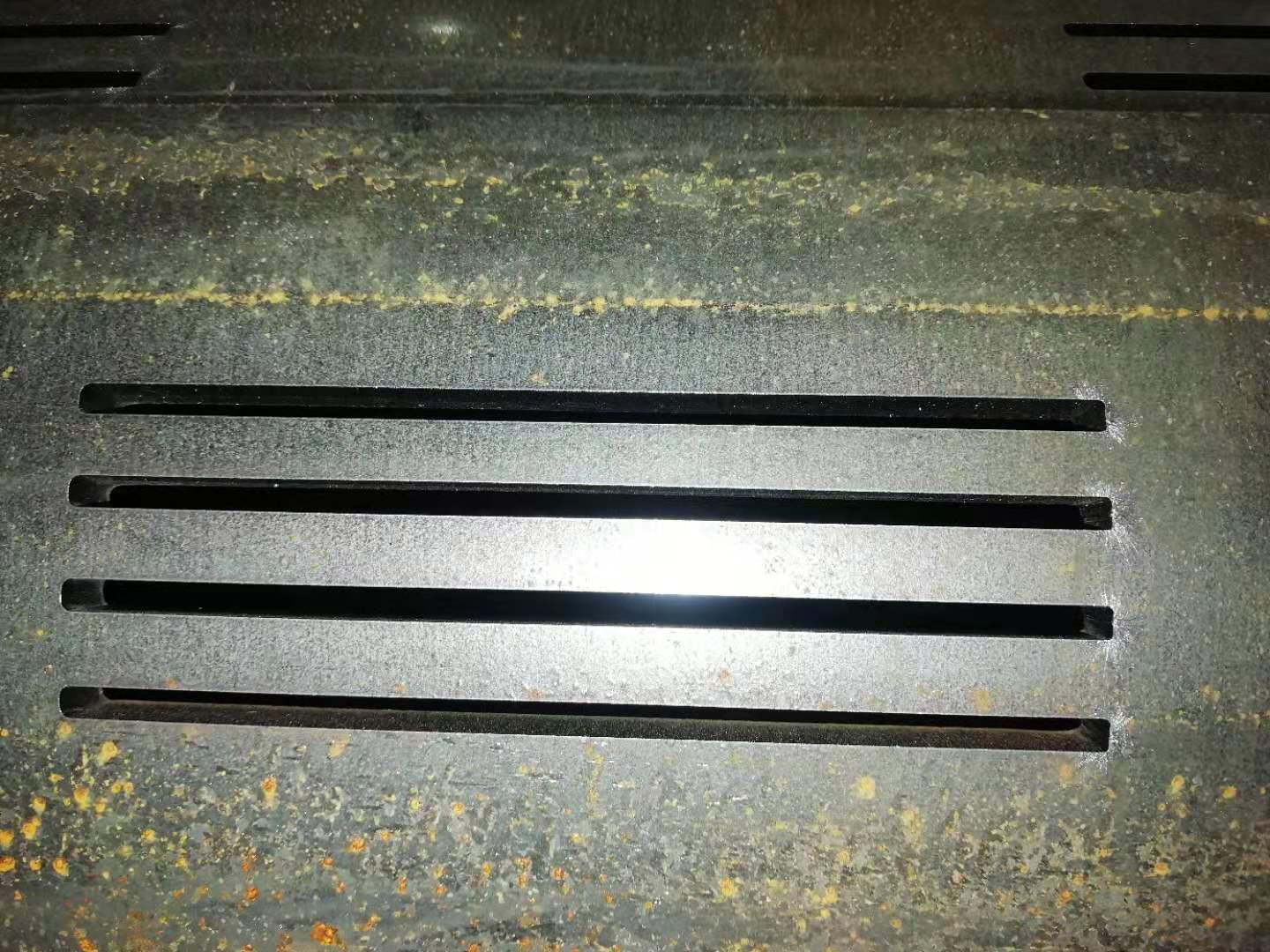

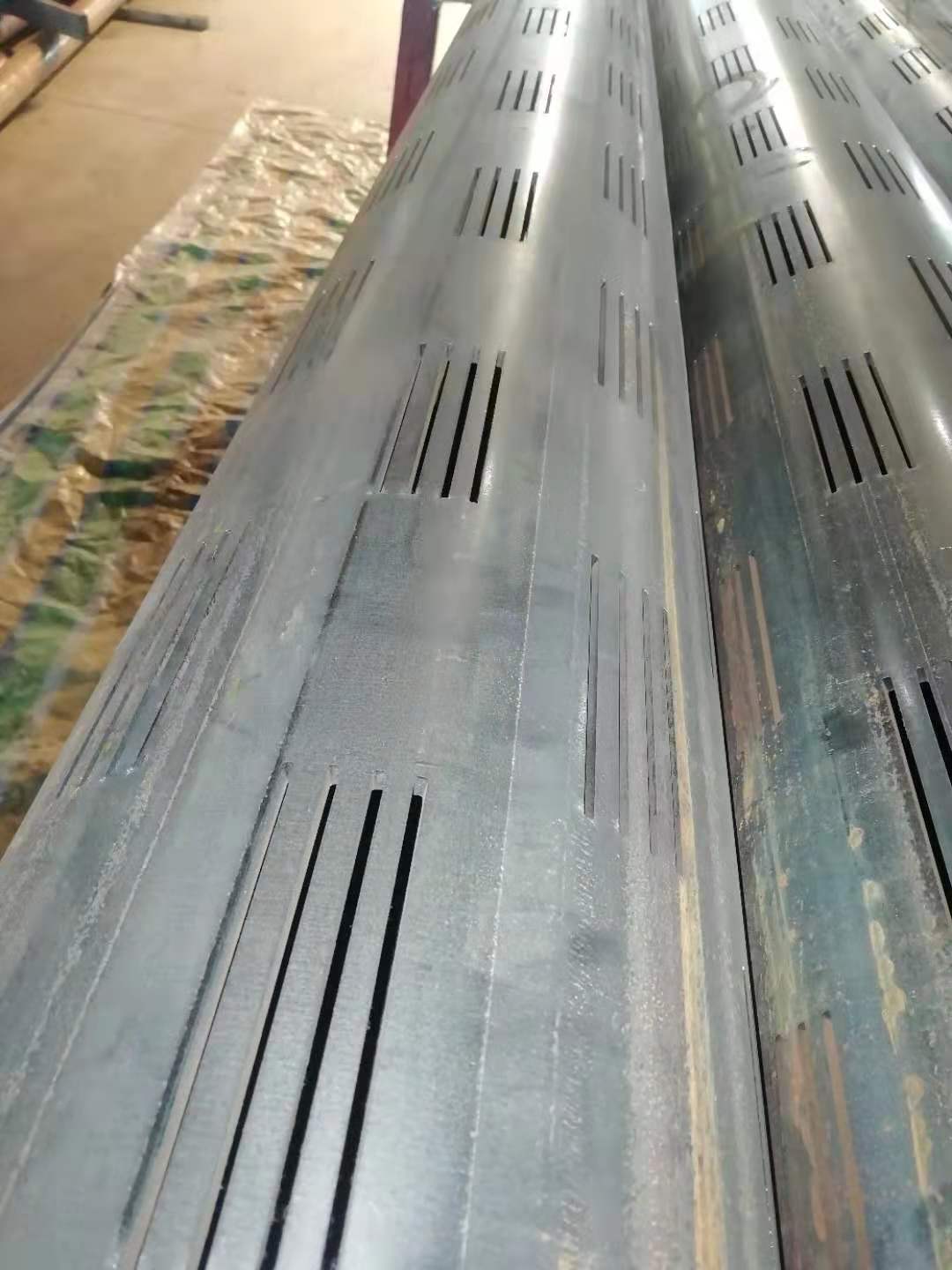

6. The slot can be longitudinal and vertical and the section of the slot can be parallel and trapezoid types.
7. Easy to operated and to be connected with larger inner diameter.

Applications
1. Where well productivity is small and economics cannot support the use of screens.
2. Ideal for sand control for low fines and clay reservoirs.
3. Excellent sand control choice for thermal heavy oil&bitumen reservoirs.
4. Suitable for high CO2/H2S, SAGD, CSS, AND CBM

Basic Parameters
Slot: Customized and can be 0.1mm minmum
Maximum length: 12m.
Diameter: from 60.32mm to 219mm.
Material — Carbon and Stainless
Thickness for carbon can be cutted 20mm max, Thickness for stainless can be cutted 10mm max
