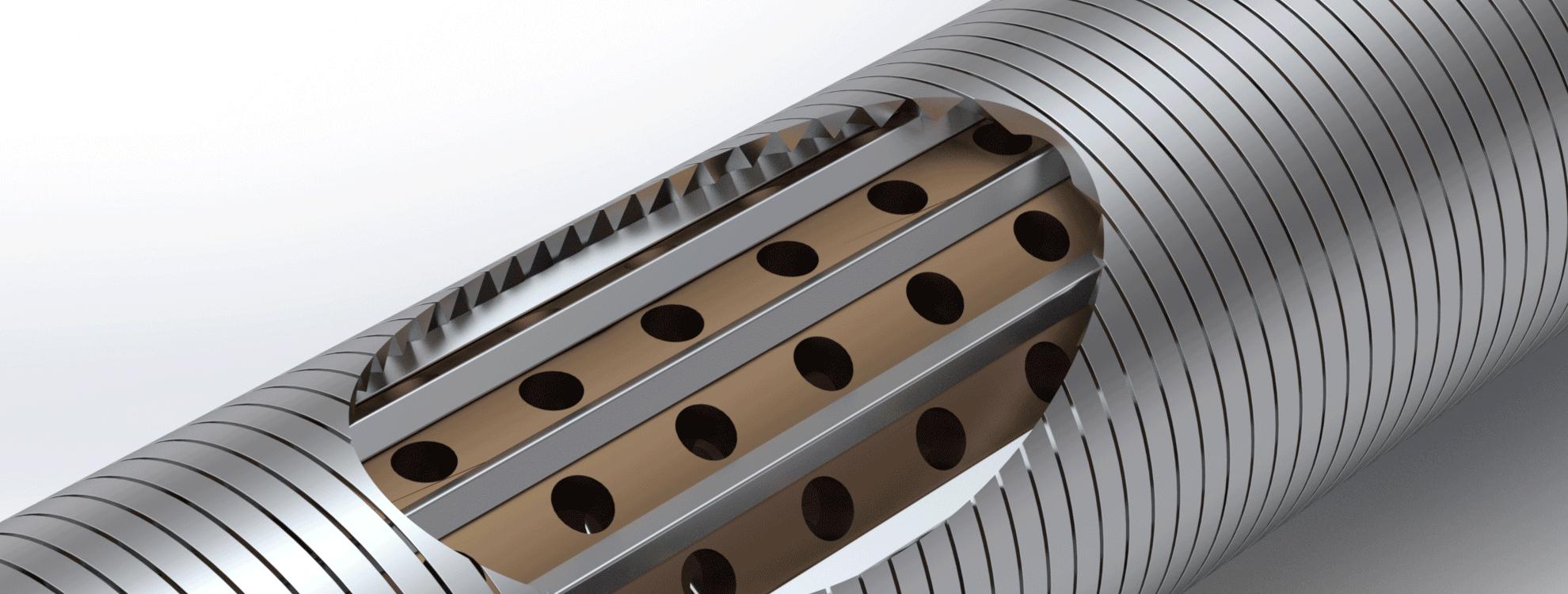

direct Wire Wrap Screen

Features & Benefits
1. Superior installation loads
2. 304L/316L stainless steel rib and wrap wire for optimized corrosion and plugging resistance
3. High open flow area 5%-20% based on screen gauge
4. Increased well bore longevity and reduced work over costs
5. Sand control is independent of the mechanical integrity of the liner
6. Low entrance velocity with lower drag forces
7. Proven technology in horizontal applications
8. Keystone wrap wire to aid in self cleaning ability of screen
9. Slot optical measurement system

Applications
Designed to be used in a wide range of oil, gas, water flood, steam flood, water, and disposal wells.
The tight gauge tolerance and high-strength properties make it ideal for high rate cased hole frac pack
applications and open hole stand alone or gravel packed completions

Basic Parameters
Slot: as per customers' request
Maximum length: 11800 mm.
Diameter: from 4-1/2'' mm to 8-5/8'' mm.
Material for wire — stainless steel 304L/316L and so on
Material for base pipe — upon request, API pipe or stainless pipe
